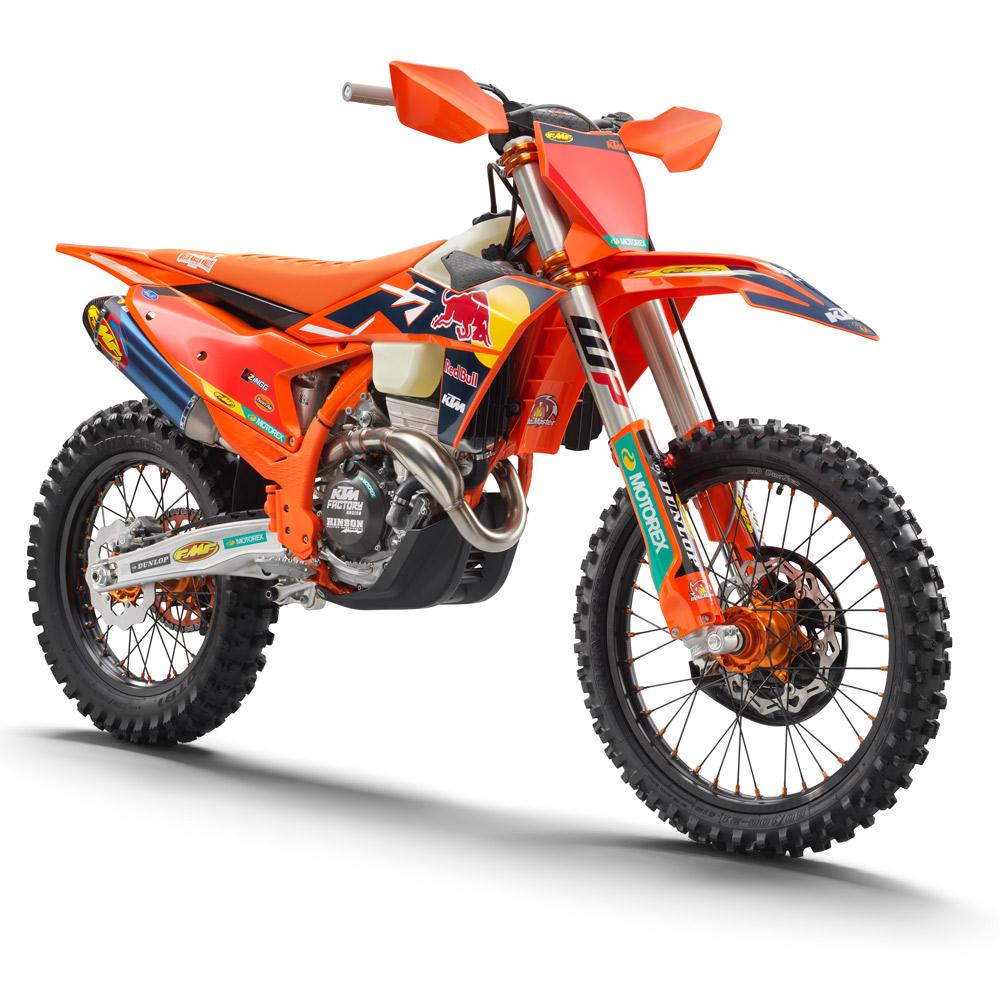

Inspired by the FMF KTM FACTORY RACING Team machines, the exclusive, limited edition KTM 350 XC-F FACTORY EDITION brings works-style weaponry to the cross-country battle zone. With its position at the peak of the KTM XC range, the FACTORY EDITON boasts pure READY TO RACE credentials, making it the choice of champions looking to not only win — but to dominate at every level.
![](https://duipangre.com/wp-content/uploads/2023/12/PHO_BIKE_90_RE_ktm-my24-350-exc-f-factory_SALL_AEPI_V1-1.png?v=1702630761)

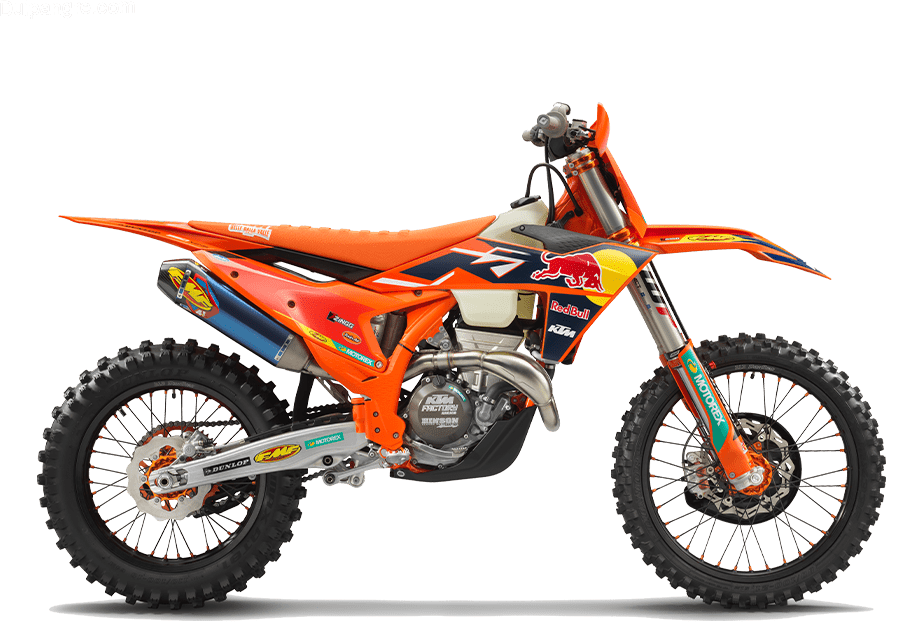

Model Highlights KTM 350 XC-F Factory edition
- Orange frame & FMF KTM Factory Racing
- FMF slip-on muffler
- Factory triple clamps anodized in orange
- KTM Factory wheels
- Factory holeshot device for fork guards
- Composite skid plate
- Factory seat with Selle Dalla Valle logo
- Semi-floating front disc
- Solid rear disc
- Front brake carbon disc guard
- Orange rear sprocket
- Hinson clutch cover
![](https://duipangre.com/wp-content/uploads/2023/12/PHO_BIKE_90_LI_350-xc-f-factory-edition-my23-90-left_SALL_AEPI_V1.jpg?v=1702630801)

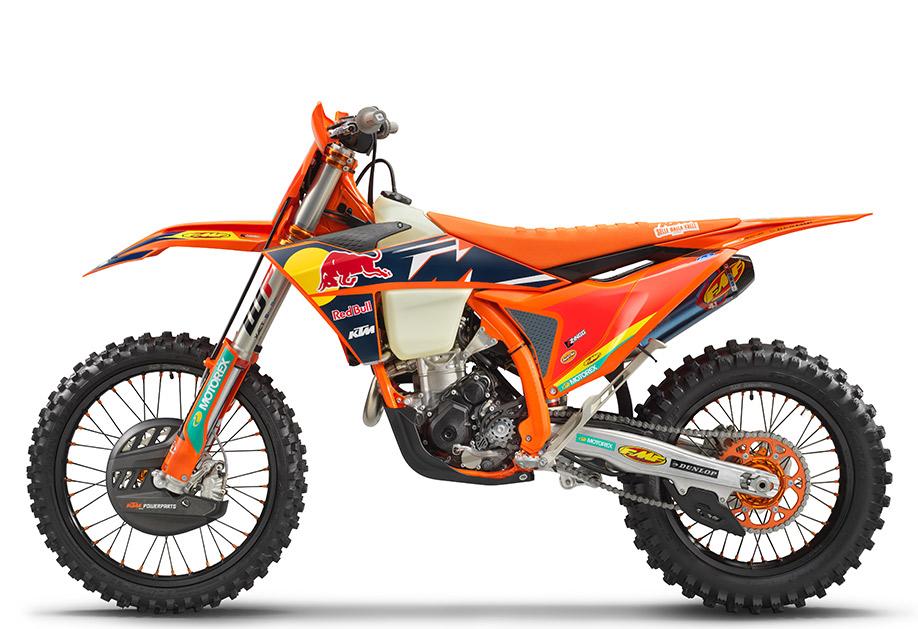

Featured Highlights KTM 350 XC-F Factory edition
FMF Factory 4.1RCT Silencer:
The titanium FMF FACTORY 4.1RCT Silencer, exclusive to the Factory Edition, sheds weight and enhances torque from the 350cc DOHC engine, unlocking even more potential.
Factory Triple Clamps and Wheel Set:
CNC-milled aluminum and anodized Factory Triple Clamps provide adjustable off-set, improving steering precision and handling. The Factory Wheel Set, with DID DirtStar rims and CNC-machined orange anodized hubs, ensures minimal weight and maximum stability.
Sump Guard, Front Disc Guard, and More:
Essential for rugged racing conditions, the Factory Edition comes equipped with a sump guard, front disc guard, and solid rear brake disc, emphasizing durability and consistent power delivery.
Factory Race Start Device:
The fork-mounted Factory Start Device assists in standing starts with selectable preloads, giving riders a competitive edge right from the beginning.
Hinson Outer Clutch Cover:
Enhancing both performance and aesthetics, the Hinson outer clutch cover adds a touch of rugged elegance to the Factory Edition.
![](https://duipangre.com/wp-content/uploads/2023/12/PHO_BIKE_PERS_REHI_350-xc-f-factory-edition-my23-rear-right_SALL_AEPI_V1.jpg?v=1702630816)

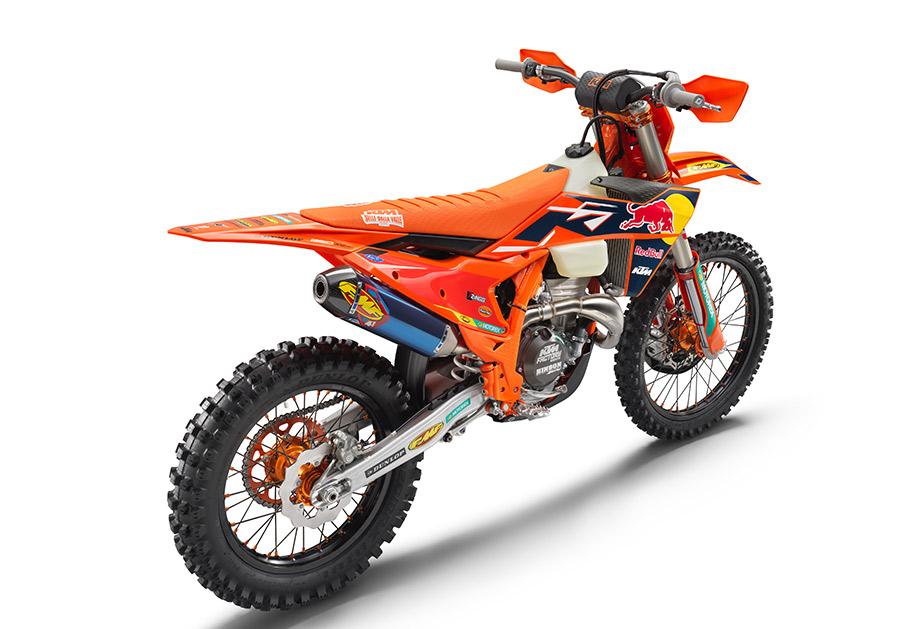

Technical Details KTM 350 XC-F Factory edition
The 2024 KTM 350 XC-F Factory Edition is a testament to KTM’s commitment to pushing the boundaries of off-road performance. With its exclusive features and factory upgrades, this bike is not just a machine; it’s a statement. As the GNCC enthusiasts in the USA revel in its glory, the rest of the world eagerly awaits the day when this off-road masterpiece becomes available on a global scale. The 2024 KTM 350 XC-F Factory Edition is a symbol of racing prowess, innovation, and the relentless pursuit of off-road excellence.
Engine Type | Single Cylinder, 4-Stroke |
Displacement | 349.7 cc |
Bore and Stroke | 88 x 57.5 mm |
Compression Ratio | 14.6:1 |
Starter/Battery | Electric Starter/12.8V, 2Ah |
Transmission | 6 gears |
Fuel System | Keihin EFI, 44 mm Throttle Body |
Lubrication | Pressure lubrication with 2 oil pumps |
Primary ratio | 24:72 |
Final Drive | 14:47 |
Cooling | Liquid Cooling |
Clutch | Wet Multi-Disc DS-Clutch, Brembo Hydraulics |
Ignition | Keihin EMS |
Frame | Central Double-Cradle Type 25CrMo4 Steel |
Sub Frame | Aluminium reinforced polyamide |
Handlebar | Neken, Aluminium 28/22 mm |
Front Suspension | WP XACT Closed Cartridge Fork, 48mm |
Rear Suspension | WP XACT Monoshock with Linkage |
Suspension Travel Front/Rear | 300/300 mm; 11.81/11.81 in |
Front/Rear Brakes | Disc Brakes 260 mm/220 mm |
Front/Rear Rims | 1.60 x 21”/ 2.15 x 18” |
Front/Rear Tires | 80/100-21”/ 110/100-18” Dunlop MX33/AT81 |
Chain | 520, X Ring |
Silencer | Titanium |
Ground Clarance | 343mm/ 13.5 in |
Wheelbase | 1493 mm ± 10mm/ 58.7 ± 0.4 in |
Seat height | 954 mm/ 37.5 in |
Tank Capacity | 8.5 l |
Weight | 105.2 kg |

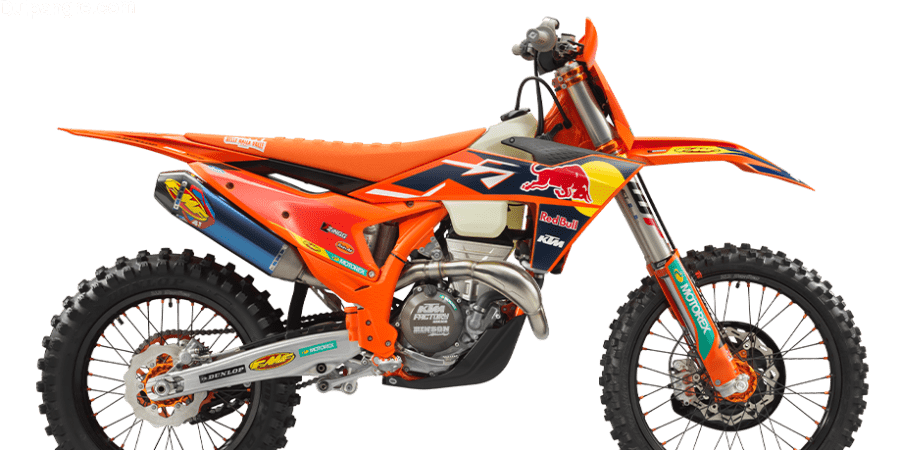

![ktm 350 XC-F Factory edition](https://duipangre.com/wp-content/uploads/2024/01/PHO_BIKE_90_RE_ktm-my24-350-exc-f-factory_SALL_AEPI_V1-2.png)
The 2024 KTM 350 XC-F Factory Edition is a testament to KTM’s commitment to pushing the boundaries of off-road performance. With its exclusive features and factory upgrades, this bike is not just a machine; it’s a statement. As the GNCC enthusiasts in the USA revel in its glory, the rest of the world eagerly awaits the day when this off-road masterpiece becomes available on a global scale. The 2024 KTM 350 XC-F Factory Edition is a symbol of racing prowess, innovation, and the relentless pursuit of off-road excellence.
