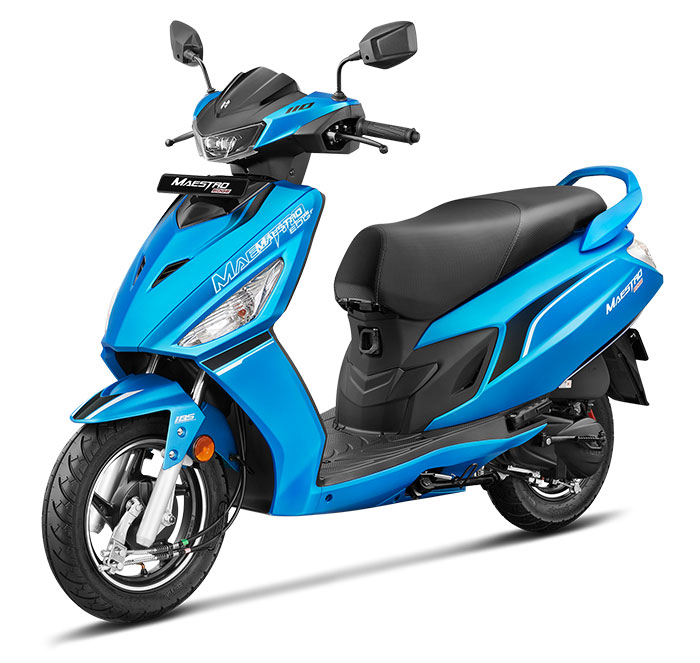

Maestro Edge 110

Designed to impress with unmatched Style and Features; Maestro Edge has a displacement of Air cooled, 4 Stroke, Single Cylinder OHC type 110.9 CC Engine comes with the Maximum Power of 5.80 kW (8 BHP) @ 7500 RPM and Maximum Torque of 10.48.50 N-m @ 5500 RPM.

Specifications

Engine

• Type – Air Cooled, 4-Stroke Single Cylinder OHC
• Displacement – 110.9 cc
• Maximum Power – 5.80 kW (8 BHP) @ 7500 RPM
• Maximum Torque – 8.50 N-m @ 5500 RPM
• Ignition – i3s+TCI unit
• Starting System – Electric Start and Kick Start

Transmission

• Clutch – Dry, Dry, Automatic Centrifugal Clutch
• Gear Box – Variomatic Drive

Suspension

• Front – Telescopic Hydraulic Shock Absorber
• Rear – Unit Swing with Spring Loaded Hydraulic Damper

Electricals

• Battery – 12V – 4Ah ETZ5 MF Battery
• Tail Lamp – 12V – 0.4W/1.6W qty – 8 nos. (LED)
• Head Lamp – 13.2V – 17W/8.5W (LED)

Dimensions

• LXWXH – 1843 X 715 X 1139 MM
• Wheelbase – 1261 MM
• Seat Height – 775 MM
• Ground Clearance – 155 MM

Tyres

• Front – 90/90-12 54 J (Tubeless Tyre)
• Rear – 90/100-10 53 J (Tubeless Tyre)

Weight

• Kerb Weight – 110 KG
• Maximum Payload – 130 KG
• Fuel Tank Capacity – 5.5 L

Colours

• Matt Candy Blazing Red
• Matt Blue
